Question 1

Is the Tesla Gen 3 Wall Connector compatible with my specific Tesla vehicle model, and does it support charging for non-Tesla electric vehicles?

Accepted Answer

The Gen 3 Wall Connector is designed to be compatible with all Tesla vehicle models, including Model S, Model 3, Model X, Model Y, and Cybertruck. It delivers up to 44 miles of range per hour (for example, on Model 3/Y) with a maximum output of 11.5 kW/48A on a 240V circuit, and its power levels can be adjusted to suit different electrical setups.

#### Compatibility with Tesla Vehicles
**All Tesla models are supported across regions**, with official documentation and retailer information confirming full compatibility. The connector is also backward compatible with earlier Tesla models, such as the 2014 Model S P85D.

#### Charging Non-Tesla Electric Vehicles
Charging non-Tesla EVs is possible if the vehicle’s charging port matches the connector type. For North American vehicles, this means NACS (North American Charging Standard), while international vehicles typically use Type 2 connectors. The Gen 3 Wall Connector supports these standards, often requiring an adapter to connect to non-Tesla vehicles. Verified examples include successful charging of vehicles like the Lucid Gravity using the Gen 3’s NACS connector, a capability not present in the Gen 2 version.

For precise compatibility, it is advisable to confirm the connector type used by your vehicle and ensure it matches the Wall Connector’s output.

Question 2

What are the electrical requirements for installation, including voltage, amperage, wiring specifications, and necessary circuit breaker types?

Accepted Answer

The unit requires a **nominal 200-240 V AC single-phase power supply**, typically hardwired with **12-4 AWG copper wire** depending on the circuit breaker size. The circuit breaker must be appropriately rated to match the desired output current, such as a 60 A breaker for a maximum 48 A output.

#### Voltage and Amperage

- **Voltage:** Nominal 200-240 V AC single-phase (supports 230 V L-N ±10%; compatible with single- or three-phase power supplies in some regions).
- **Amperage:** Adjustable output ranging from 12 A up to 48 A, set during commissioning and sometimes limited by the vehicle.

#### Wiring Specifications

| Component       | Details                                                                                  |
|-----------------|------------------------------------------------------------------------------------------|
| Wire Gauge      | 12-4 AWG (3.5-25 mm²) copper only; for 60°C breakers, minimum 4 AWG 90°C THWN-2 copper for max power |
| Terminals      | Line 1, Neutral, Protective Earth (PE) required; Line 2/3 optional depending on grid type |
| Conduit         | Standard ¾" (21 mm), with 1" (27 mm) optional                                           |
| Grounding       | TN/TT grounding scheme                                                                   |

#### Circuit Breaker Types

| Breaker Size (A) | Max Output (A) | Power (kW at 240 V) |
|------------------|----------------|---------------------|
| 60               | 48             | 11.5                |
| 50               | 40             | 9.6                 |
| 40               | 32             | 7.7                 |
| 30               | 24             | 5.7                 |
| 20               | 16             | 3.8                 |
| 15               | 12             | 2.8                 |

These specifications are drawn from official Tesla Energy Library manuals and support documentation, which serve as the most reliable sources. Regional variations exist, such as three-phase compatibility in Australia and the UK, but the default installation in the U.S. is single-phase.

Question 3

What is the maximum charging speed (kW) and how much range can it add per hour for different Tesla models?

Accepted Answer

The Gen 3 Wall Connector delivers a **maximum charging power of 11.5 kW at 48 amps**, though actual charging speed depends on the vehicle’s onboard charger capacity.

#### Range Added Per Hour

At full output (48 amps / 11.5 kW), the estimated range added per hour is:

| Tesla Model | Miles of Range per Hour |
|-------------|------------------------|
| Model 3     | **44 miles**           |
| Model Y     | **44 miles**           |
| Model S     | 41 miles               |
| Model X     | 35 miles               |
| Cybertruck  | 30 miles               |

#### Lower Output Variants

Certain models, such as the Model 3 Rear-Wheel Drive and Model Y variants, have a **maximum onboard charging rate of 32 amps (7.7 kW)**, resulting in up to **30 miles of range added per hour**.

#### Additional Details

Compared to the previous generation, which supported up to 80 amps, the Gen 3 Wall Connector’s maximum current is limited to 48 amps. This adjustment aligns with the charging capabilities of newer Tesla vehicles. The unit’s current is adjustable between 12 and 48 amps to accommodate different electrical panel setups.

Question 4

What are the physical dimensions of the Wall Connector, the length of the charging cable, and is it suitable for both indoor and outdoor installations?

Accepted Answer

The Tesla Gen 3 Wall Connector is designed with a compact form and practical features for home charging. It measures **13.6 inches (345 mm) in height and 6.1 inches (155 mm) in width**, with a depth that varies between **4.3 inches (110 mm) and 5.9 inches (150 mm)** depending on the model variant. The charging cable is **24 feet (7.3 meters) long**, providing ample reach for most garage or driveway setups.

#### Physical Dimensions
The main unit’s dimensions are consistent across official specifications, excluding the cable. The depth variation reflects regional or configuration differences. The wire box bracket adds additional size, approximately 9.8 inches (250 mm) high by 4.7 inches (120 mm) wide and 2.0 to 3.5 inches (50–90 mm) deep. The unit weighs between 10 and 13 pounds (4.5 to 5.7 kg), including the wire box.

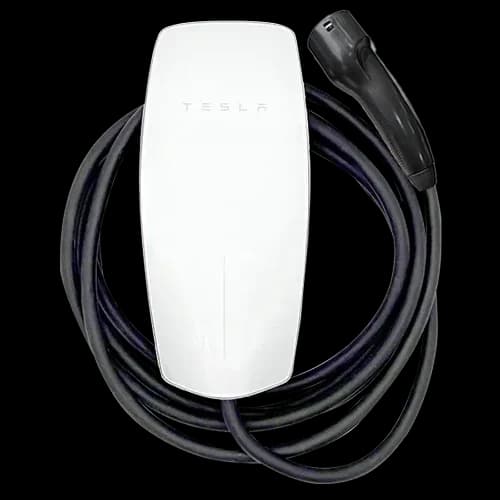

#### Charging Cable Length
The standard cable length is **24 feet (7.3 meters)**, which is typical for this model. Some markets may offer a shorter 8.5-foot (2.6-meter) option, but the 24-foot cable is the norm.

#### Indoor and Outdoor Use
This Wall Connector is rated for operation in temperatures ranging from **-22°F to 122°F (-30°C to 50°C)**, making it suitable for both indoor and outdoor installations. Installation guidelines specify minimum mounting heights of 24 inches (0.6 meters) outdoors and 18 inches (0.45 meters) indoors. The design supports versatile placement without compromising performance or safety.

Question 5

Does the Wall Connector require a Wi-Fi connection, and what smart features are available through the Tesla app, such as scheduling, monitoring, and over-the-air updates?

Accepted Answer

The Wall Connector needs a Wi-Fi connection to unlock most smart features and integrate with the Tesla app, although it can perform basic charging without it.

#### Wi-Fi Connection

**Connecting the Wall Connector to your home Wi-Fi network is essential** for remote control and monitoring via the Tesla app. The initial setup requires linking to the Wall Connector’s own Wi-Fi to scan a QR code and register the device, followed by connecting it to your home network. Without this connection, the Wall Connector cannot communicate with the app.

#### Smart Features in the Tesla App

The app offers a range of features to manage and optimize charging:

- **Scheduling and Control:** Set charging times, start or stop charging remotely, and adjust charge limits.
- **Monitoring and Data:** View real-time charging status, power usage, and up to 12 months of charging history including energy delivered and charge duration.
- **Access Management:** Control who can use the Wall Connector by configuring access permissions.
- **Integration:** Monitor all Tesla energy products in one place and enable features like Charge on Solar for homes with Tesla solar or Powerwall systems.
- **Over-the-Air Updates and Diagnostics:** Receive automatic firmware updates and allow remote diagnostics through the Wi-Fi connection.

These features are also available to non-Tesla EV owners using the Universal Wall Connector, enabling app-based charging management regardless of vehicle brand.

Question 6

Can the Gen 3 Wall Connector support power-sharing with multiple units, and how is amperage configured for such setups?

Accepted Answer

The Gen 3 Wall Connector supports **power-sharing among up to six units** using a firmware-based Group Power Management system.

#### Power-Sharing Functionality

Group Power Management enables multiple Wall Connectors to share a site’s total available power through unit-to-unit Wi-Fi communication. When several vehicles charge simultaneously, the system dynamically allocates power to minimize overall charge time while keeping the total power draw within safe limits. For instance, two Wall Connectors on a single 60-80 amp circuit, each rated for 48 amps, will split the available amperage. If only one vehicle is charging, it receives the full capacity; when a second vehicle connects, the power is shared equally until one finishes charging, at which point the remaining power is redirected.

#### Amperage Configuration

**Each Wall Connector is rated for 48 amps** and can be adjusted between 12 and 48 amps, delivering up to 11.5 kW per unit. During installation, each unit can be set to its full branch circuit capacity (up to 60 amps). One unit acts as the “leader,” managing the total current limit for the group, while the others operate as “followers” connected via Wi-Fi. The combined output of all connected units will not exceed the site’s allocated power limit.

This approach offers a cost-effective solution for residential and commercial settings by reducing the need for separate circuits for each charger.

Question 7

What is the warranty period for the Tesla Gen 3 Wall Connector, and what safety features are integrated (e.g., overcurrent, ground fault, thermal protection)?

Accepted Answer

The warranty for the Gen 3 Wall Connector covers **48 months (4 years) for normal residential use** and **12 months for commercial use**, both starting from the date of purchase. This warranty addresses manufacturing defects under typical conditions, with remedies limited to repair or replacement using new or refurbished parts. The original warranty period does not extend with replacements.

Regarding safety features, there is no publicly available, verified information confirming the inclusion of **overcurrent protection**, **ground fault protection**, or **thermal protection** in this model. Official sources and expert reviews do not detail these specifications, and Tesla’s support materials focus primarily on troubleshooting rather than safety system descriptions.

Some users have reported difficulties with warranty claims related to installation specifics or policy interpretations, but these accounts are anecdotal and not independently verified.

Question 8

Are there any specific requirements or potential issues regarding home Wi-Fi network compatibility for optimal performance?

Accepted Answer

The Tesla Gen 3 Wall Connector requires a **2.4 GHz Wi-Fi network** for initial setup and to enable features such as remote control, scheduling, firmware updates, and data access through the Tesla app. Official documentation does not specify restrictions on other Wi-Fi bands or advanced protocols.

#### Key Requirements and Setup

- **Initial Commissioning** involves connecting a Wi-Fi-enabled device to the Wall Connector’s temporary ad-hoc Wi-Fi network, which is available for 5–15 minutes after powering on or pressing the handle button for 5 seconds. Through this connection, users access a web interface (via QR code or http://192.168.92.1) to configure breaker size and join the home’s **2.4 GHz Wi-Fi network** using its SSID and WPA2 password. Disabling cellular data on the device may help if connection issues arise.
- **Ongoing Connectivity** allows the Wall Connector to communicate with routers, vehicles, and Tesla products for power sharing and app integration. Wi-Fi enables automatic firmware updates, which are recommended for accessing new features like Access Control (available from firmware version 21.36.4 onward). Manual offline updates remain an option.

#### Potential Issues and Troubleshooting

- **Charging Without Wi-Fi** is possible, as the unit defaults to breaker limits (e.g., 32A on a 40A breaker) when not connected to a network. However, commissioning for custom settings and app features requires temporary connection to the Wall Connector’s Wi-Fi network; internet access is not necessary during this step.
- **Connection Troubleshooting** includes restarting the Wi-Fi broadcast by cycling power or holding the button, verifying the Wi-Fi password, and trying different devices. Demonstrations show successful connections to standard home networks with typical DNS and subnet configurations.
- **Compatibility Considerations**: Tesla’s official materials do not report restrictions related to router brands, encryption beyond WPA2, or 5 GHz band incompatibility. User experiences confirm successful setup on common home networks without documented issues such as signal interference or protocol mismatches.

This information is based on Tesla’s official documentation, support resources, and user reports.
