Question 1

Is it compatible with my existing HVAC system (e.g., furnace, heat pump, boiler, multi-stage systems)?

Accepted Answer

The ecobee Smart Thermostat Premium is designed to work with most existing 24VAC HVAC systems, including furnaces, heat pumps, boilers, and multi-stage systems.

#### System Support
It supports conventional furnaces and air conditioners with up to **2 stages of heat and 2 stages of cool (2H/2C)**. For heat pumps (air-to-air and geothermal), it accommodates up to **4 stages of heat (2-stage heat pump plus 2-stage auxiliary heat) and 2 stages of cool**. Boilers with up to **2 stages of heat** are also compatible. Multi-stage and multi-speed fan systems, such as non-proprietary multi-speed fans (G1/G2/G3 wires), 2/4-pipe fan coil units, and multi-speed PTACs, are supported, though it is not compatible with dual-transformer systems without the Power Extender Kit or certain high-speed fan configurations.

#### Installation Features
A **Power Extender Kit (PEK)** is included to enable installation in homes without a C-wire, covering most 24VAC-powered setups. The thermostat also supports HVAC accessories like humidifiers, dehumidifiers, HRVs, and ERVs, with dual support available in professional installations.

#### Verification Tools
A **Thermostat Compatibility Checker** and wiring diagrams are available to help confirm compatibility with specific systems, including conventional setups, heat pumps with auxiliary heat, and dual transformer configurations. Support is accessible via phone for further assistance.

These compatibility details are drawn from official ecobee specifications and third-party compatibility charts. For precise confirmation, especially with proprietary or uncommon systems, using the compatibility checker or consulting a professional is recommended.

Question 2

Does it require a C-wire for power, and if so, what are the alternatives or workarounds?

Accepted Answer

The ecobee Smart Thermostat Premium **requires a C-wire (common wire) for continuous power** to operate reliably. Without a C-wire, it cannot function properly on standard 2- or 3-wire heat-only systems.

#### Power Requirements
The C-wire provides a steady 24V AC power supply from the HVAC system. Typical thermostat wiring includes a C-wire, often blue and labeled C, X, or sometimes B if not used for reversing valves. It’s helpful to check behind the thermostat backplate or at the furnace/air handler’s C terminal during installation to confirm its presence.

#### Alternatives and Workarounds
If a C-wire is not available, the included **Power Extender Kit (PEK)** can be installed at the HVAC control board. The PEK derives a C-wire from existing wires by combining functions (such as Y and G), supporting most setups without a dedicated C-wire. For 2-wire systems, the PEK creates the necessary C-wire using available lines. Other options include running a new 18/5 thermostat cable or hiring a professional for complex systems like heat pumps with separate O/B wires. Installation typically requires basic tools and takes about 45 minutes with app guidance.

#### Additional Notes
Official ecobee documentation and support resources confirm the necessity of a C-wire and recommend the PEK as the primary solution when one is absent. Professional installation is advised for users unfamiliar with HVAC wiring.

Question 3

What smart home ecosystems and voice assistants does it integrate with (e.g., Alexa, Google Assistant, Apple HomeKit)?

Accepted Answer

The ecobee Smart Thermostat Premium works with several major smart home ecosystems, including **Apple HomeKit, Amazon Alexa, Google Assistant, SmartThings, and IFTTT**.

This broad compatibility enables control of the thermostat via various platforms and voice assistants, allowing for convenient remote access and hands-free operation through your chosen smart home setup.

Question 4

How does the included SmartSensor function, and can additional sensors be purchased and integrated for multi-room temperature control?

Accepted Answer

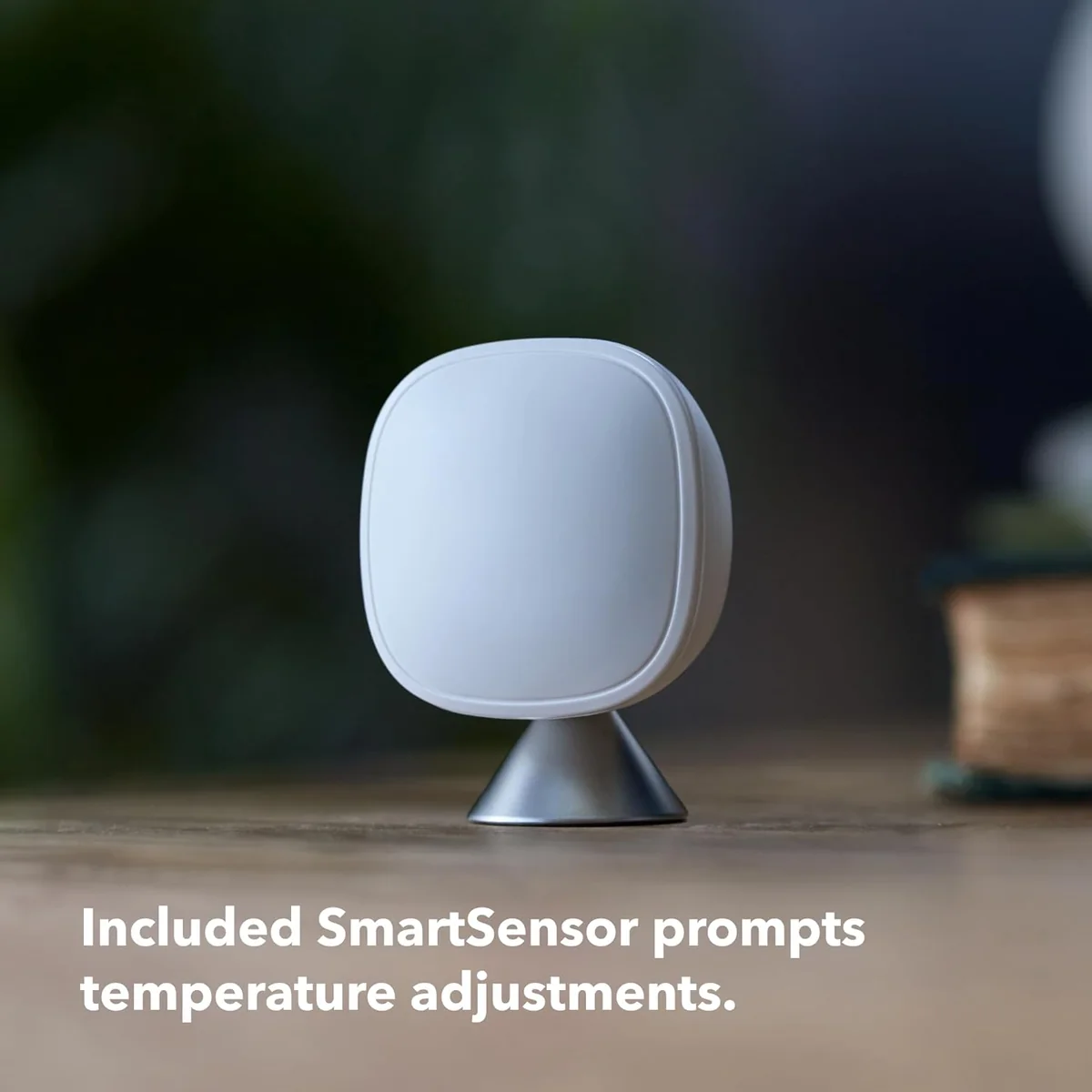

The included SmartSensor uses infrared technology to detect occupancy through body heat and measures temperature and humidity. It communicates wirelessly with the thermostat via a 915MHz radio signal to help adjust settings based on real-time room conditions.

This sensor supports features like **Follow Me**, which prioritizes data from occupied rooms to maintain comfort, reduce hot and cold spots, and improve energy efficiency by lowering HVAC use when the home is empty. Assigning sensors to specific comfort settings, such as sleep mode in a bedroom, can enhance temperature accuracy beyond the thermostat’s default readings.

Additional SmartSensors can be purchased separately and integrated through the app by scanning a QR code and activating the device. The system supports up to **32 sensors**, allowing customizable participation across different comfort settings like Home, Away, and Sleep. While third-party sensors cannot control the thermostat, they remain usable within the Home app. Verified user feedback and expert reviews highlight the effectiveness of multi-room sensor setups for balanced temperature control and energy savings, with some reports indicating reductions in energy use by up to 26%.

Question 5

What are the specific smart features and monitoring capabilities (e.g., built-in radar for occupancy, smoke/CO detection, air quality monitoring)?

Accepted Answer

The ecobee Smart Thermostat Premium offers a range of advanced smart features and monitoring capabilities aimed at improving home comfort and safety.

#### Occupancy and Motion Detection

It incorporates **built-in radar technology** for occupancy and motion detection, which can sense presence from greater distances and around corners. Unlike traditional infrared sensors, this radar operates discreetly inside the thermostat without a visible lens, contributing to a sleek design while enhancing energy efficiency.

#### Air Quality Monitoring

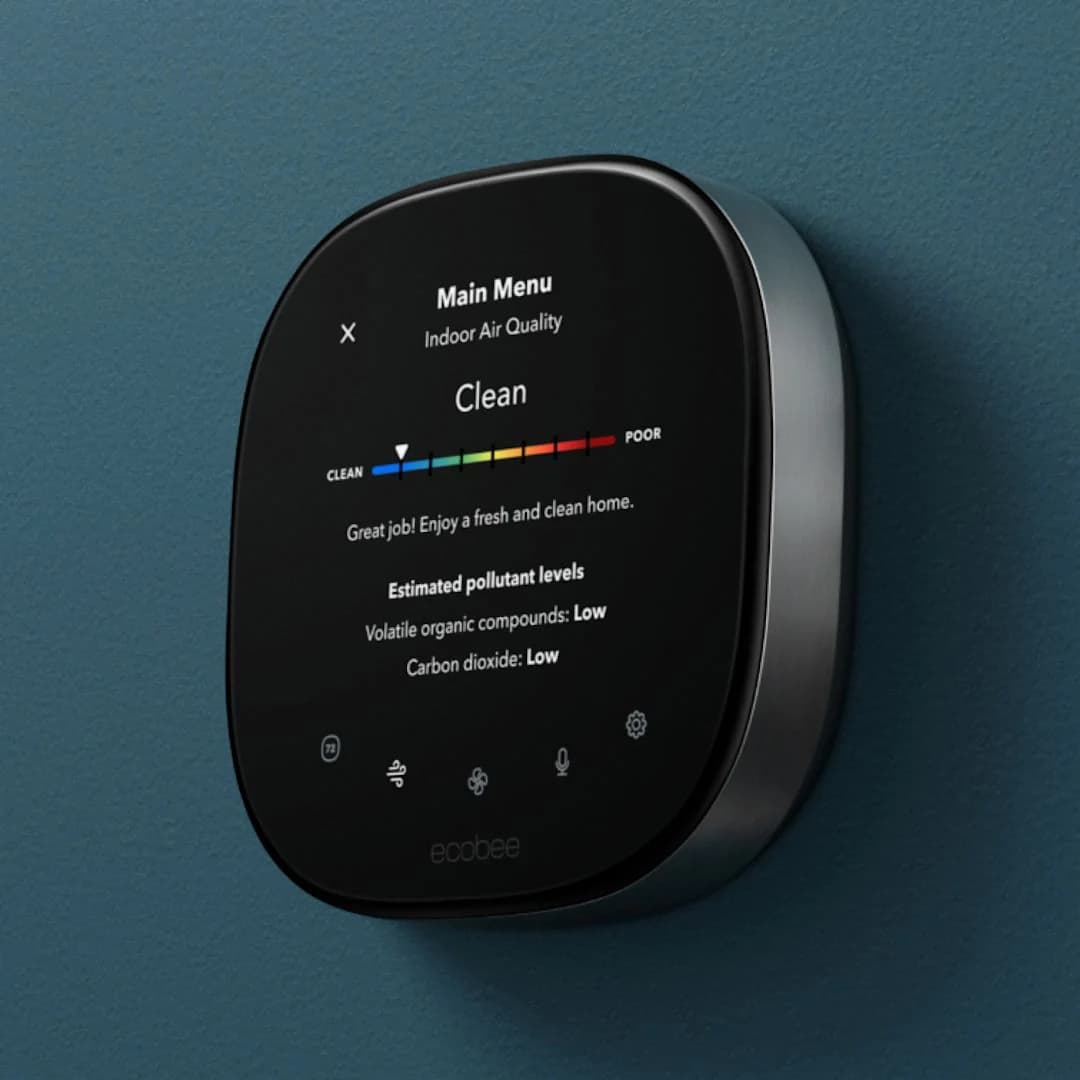

The thermostat includes a **built-in air quality monitor** that tracks volatile organic compounds (VOCs) and carbon dioxide levels. It provides alerts when air quality declines and suggests simple steps to improve indoor air conditions.

#### Smoke and Carbon Monoxide Detection

There is **integrated smoke alarm detection** functionality that can notify users of potential smoke or carbon monoxide issues, even when away from home.

#### Temperature and Humidity Sensing

Temperature and humidity are continuously monitored with **sensors offering ±1°F (±0.5°C) temperature accuracy** and humidity readings from 5% to 95% with ±5% sensitivity.

#### SmartSensor Integration

A **removable SmartSensor** is included to wirelessly relay temperature and occupancy data from other rooms, helping to identify hot or cold spots and optimize comfort throughout the home.

#### Additional Monitoring Features

The device provides **alerts and service reminders** for air filter status, temperature extremes, and high humidity. It also supports **geofencing** based on user device location and features a built-in smart speaker compatible with Alexa and Siri voice controls.

Question 6

What are the connectivity requirements and security protocols (e.g., Wi-Fi band support, data encryption)?

Accepted Answer

The device supports **dual-band Wi-Fi (802.11 b/g/n at 2.4 GHz and 802.11 a/n/ac at 5 GHz), Bluetooth 5.0, and a 915 MHz radio** for connectivity. It employs WPA, WPA2, and WPA3 encryption for Wi-Fi security, along with 168-bit SSL encryption for data transmission. Both DHCP (dynamic) and static IP addressing are supported.

Power is supplied via a 24 VAC C wire or a Power Extender Kit if needed, which is necessary for continuous operation but unrelated to wireless connectivity. Integration with platforms like Apple HomeKit, Amazon Alexa, Google Assistant, SmartThings, and IFTTT uses these wireless protocols. Data usage typically ranges from 15 to 20 MB per month, depending on Alexa Voice Service activity.

These details are based on official product documentation and support materials. No independent verification of the security protocols or encryption strength is available.

Question 7

What is the process for installation, and is it suitable for a DIY approach or does it require professional installation?

Accepted Answer

The installation process typically takes about 45 minutes and involves verifying HVAC compatibility, labeling and wiring the thermostat (with or without a C-wire using the included Power Extender Kit), mounting the backplate, attaching the device, and completing setup through the ecobee app. It is designed to accommodate a **DIY approach** for most users with basic tools, though professional installation is advisable for complex wiring situations or if there is discomfort with electrical work.

#### Installation Steps

1. **Preparation**
   Turn off power at the breaker and check HVAC compatibility using ecobee’s online tool. Download the ecobee app for guided setup. Essential tools include Phillips and flathead screwdrivers, a drill with a 3/16” bit, and optionally wire strippers.

2. **Removing the Old Thermostat**
   Remove the cover and label each wire with the provided stickers to match terminals (e.g., R to RC, W to W1, blue wire as C if present).

3. **Wiring**
   - **With a C-wire:** Connect wires directly to corresponding terminals by pushing them in and securing with a gentle tug.
   - **Without a C-wire:** Use the Power Extender Kit (PEK) installed at the HVAC unit to provide power.
   - For multiple G-wires, one can be repurposed as a C-wire.
   After wiring, push wires back into the wall.

4. **Mounting**
   Drill pilot holes, insert anchors and screws, attach the backplate, then snap the thermostat onto it.

5. **Power On and Setup**
   Restore power and follow the app’s guided configuration, which includes connecting to Wi-Fi, selecting HVAC type, and adding sensors. The thermostat auto-detects wiring.

#### Included Components and Support

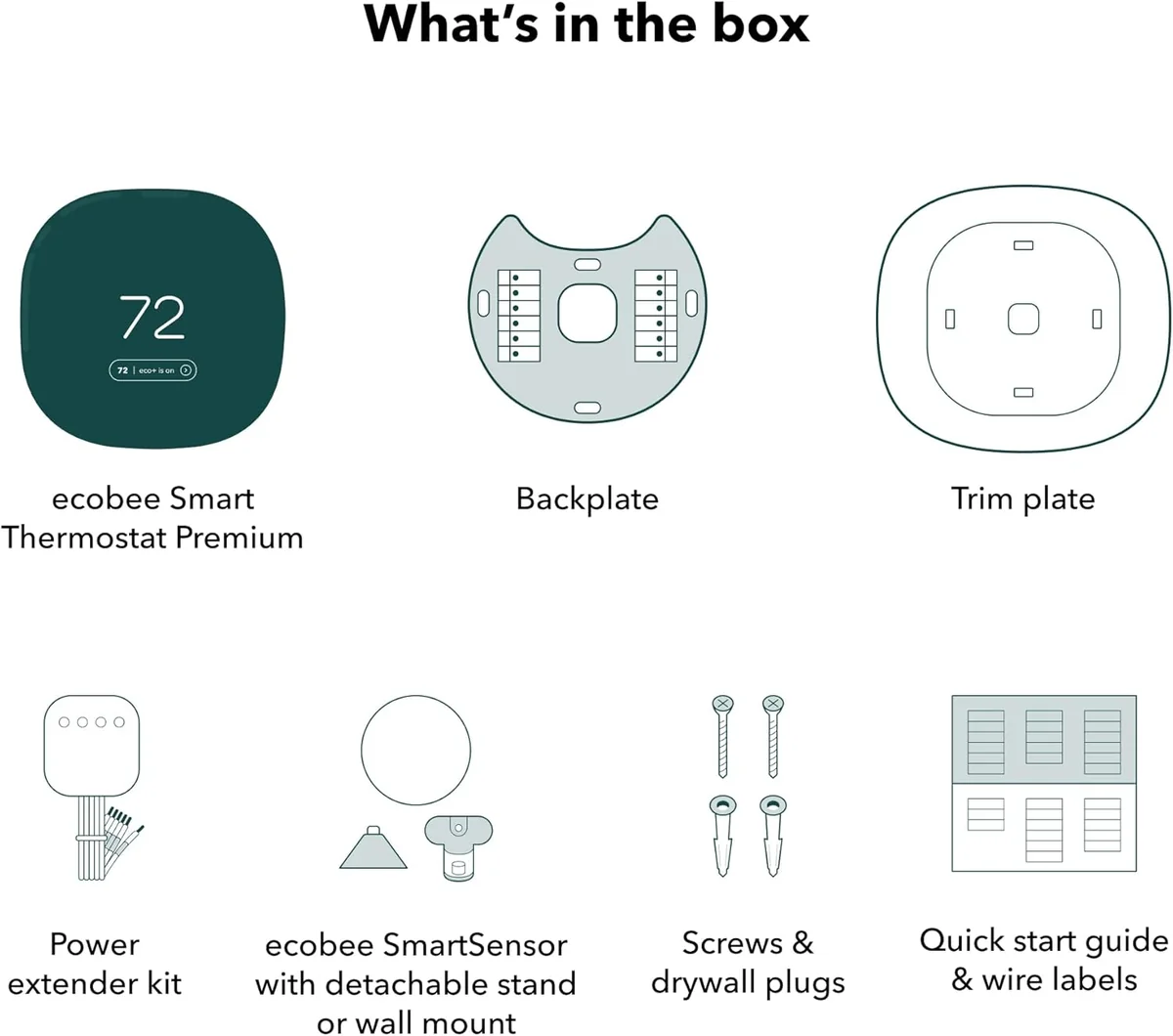

The package contains the thermostat, backplate, trim plate, Power Extender Kit, screws and anchors, wire labels, and a detailed installation guide.

#### DIY Suitability

The process is presented as straightforward for most homes, supported by app guidance, videos, and diagrams covering conventional, heat pump, and dual transformer systems. User demonstrations often describe the wiring as simple, requiring no screwdriver for wire connections and completing installation quickly. The manual outlines three common wiring scenarios for DIY installers and notes that professional help is recommended for uncommon wiring setups such as separate O/B wires. Official resources emphasize that most installations take about 30 to 45 minutes, with no significant reports of widespread installation issues. Individual experiences may vary depending on home wiring complexity.

Question 8

What kind of energy savings can be expected, and how are features like geofencing and scheduling utilized?

Accepted Answer

Energy savings with this thermostat can reach up to **26% on annual heating and cooling costs**, which may translate to approximately $284 USD based on average North American energy use. These estimates primarily come from the manufacturer’s internal analysis and have not been independently verified.

#### Energy Savings Details

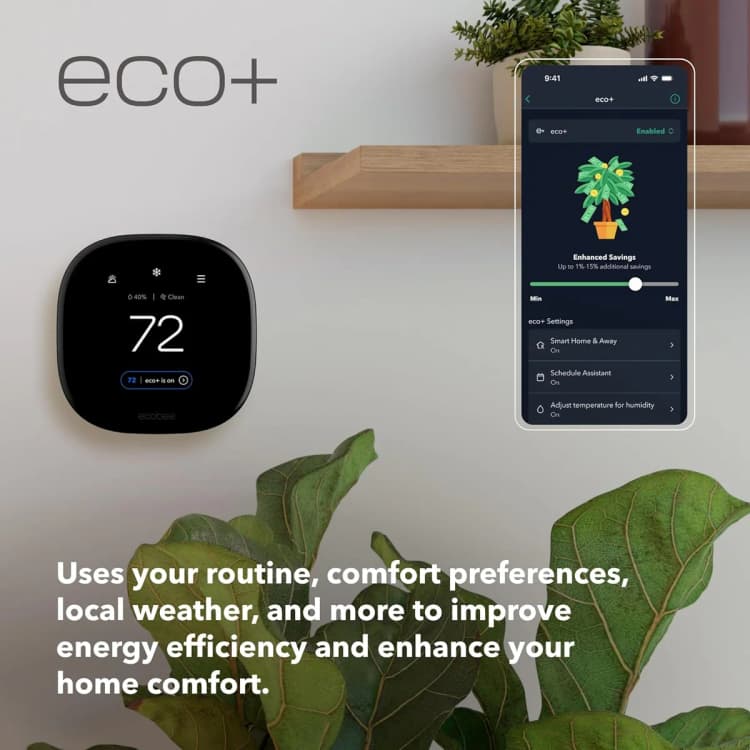

The device’s eco+ features, including Smart Home & Away (geofencing), scheduling, and Time of Use optimization, work together to reduce HVAC runtime by adjusting settings based on local weather, electricity pricing, and occupancy. Time of Use shifts heating and cooling to off-peak hours, potentially adding **7–26% additional cooling savings**. Community Energy Savings programs allow participation in utility demand response events, offering rewards up to $125 through precooling and minor temperature adjustments during peak demand.

While ENERGY STAR recognizes geofencing as a key efficiency feature, independent testing has been limited. One review rated the energy-saving features moderately due to fewer dedicated eco modes compared to competitors. Actual savings vary widely depending on location, user habits, and HVAC equipment.

#### Geofencing and Scheduling Use

Geofencing uses phone location to detect when occupants leave or return, automatically adjusting temperatures to save energy and restoring comfort settings upon arrival. This feature integrates with occupancy sensors for improved accuracy.

Scheduling leverages learning algorithms to identify user patterns and suggest optimized temperature schedules through a Schedule Assistant. The eco+ system further refines these schedules by considering humidity, routines, and energy efficiency goals.

App controls provide detailed runtime insights, neighborhood usage comparisons, and monthly reports to help track and manage energy consumption effectively.

Question 9

What is the user interface like on the thermostat itself and within the mobile app for control and monitoring?

Accepted Answer

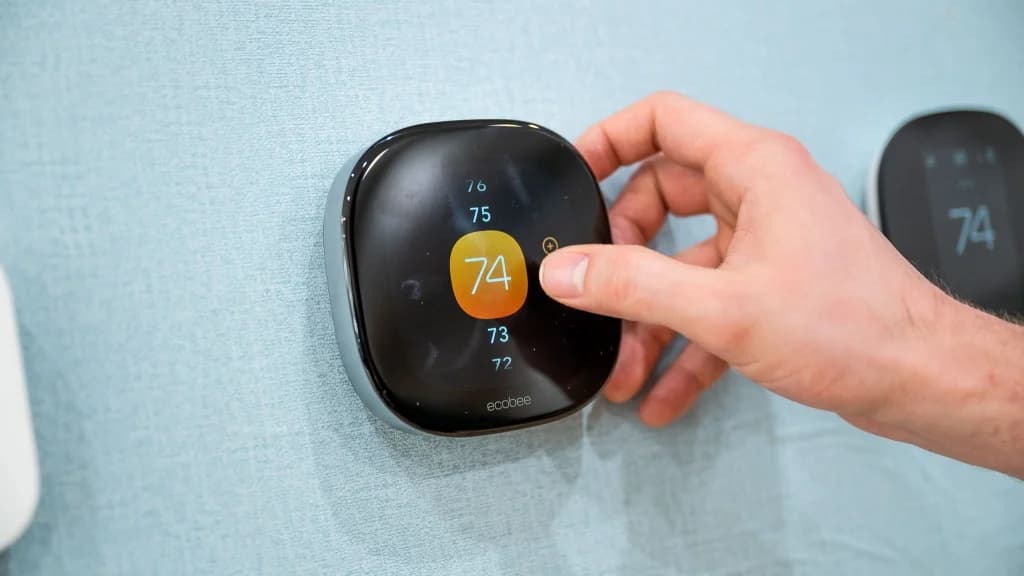

The thermostat features a **4-inch full-color LCD touchscreen** with a resolution of 540 x 540 pixels, which is about 50% larger than previous models. The interface is designed to be colorful and vibrant, optimized for easy navigation through touch gestures such as swiping sliders and tapping icons.

#### On-Device Interface

The home screen prominently displays the current temperature, humidity, air quality indicators (including VOCs and CO2 levels), and the active schedule. Users can adjust the temperature by tapping and swiping or using a dial, and quickly access modes like heat or cool by tapping mode icons. The interface employs a distinctive "squircle" design with larger temperature sliders and a proximity sensor that activates the display when a hand approaches. A clear menu icon provides access to settings such as energy-saving modes (eco+), smart home/away detection via radar, schedules, reminders, text size, brightness, and smart preheat/cool options. Reviews highlight the interface’s responsiveness, sleek glass design concealing radar sensors, and overall intuitiveness, often describing the home screen as “beautiful” and easier to use than earlier versions.

#### Mobile App Interface

The mobile app allows for **remote control** from smartphones, tablets, and Apple Watch. It offers sliders for temperature and eco+ adjustments, sensor prioritization for different rooms, schedule management, geofencing-based smart home/away settings, reminders, energy reports, and vacation mode. Setup is described as straightforward, with prompts for seasonal temperature preferences and HomeKit pairing. The app includes a Schedule Assistant that suggests routines and eco+ toggles. User walkthroughs note the app’s intuitive sliders and location-based preheat features, though some users desire clearer explanations for certain functions.

These descriptions are based on official specifications and expert video reviews; independent lab testing was not identified, but user demonstrations confirm the functionality as presented.

Question 10

What is the warranty period and what does it cover?

Accepted Answer

The ecobee Smart Thermostat Premium comes with a **3-year limited warranty** that covers defects in materials and workmanship under normal use. During this period, the manufacturer will repair or replace defective products at no charge, provided proof of purchase is presented.

#### Coverage Details
The warranty begins on the date of purchase and applies to the original consumer. If a product is repaired or replaced, the coverage continues for the longer of the remaining original term or 90 days. It does not cover costs related to removal, reinstallation, shipping, improper installation, abnormal use or maintenance, or damage unrelated to defects. Liability is limited strictly to repair or replacement, excluding incidental or consequential damages.

#### Verification and Variants
Information from official ecobee sources, including product pages and support documentation, consistently confirms the 3-year limited warranty. Retailers such as Best Buy, Duke Energy shop, and Home Depot also reflect this coverage. A Carrier-branded variant offers a 5-year warranty through Carrier support, and professional installation may extend warranty terms on certain models.

All warranty details are based on manufacturer and retailer claims and should be independently verified for accuracy. Third-party extended warranty options are available separately.
